SOLAR MOTION SECURITY LIGHT

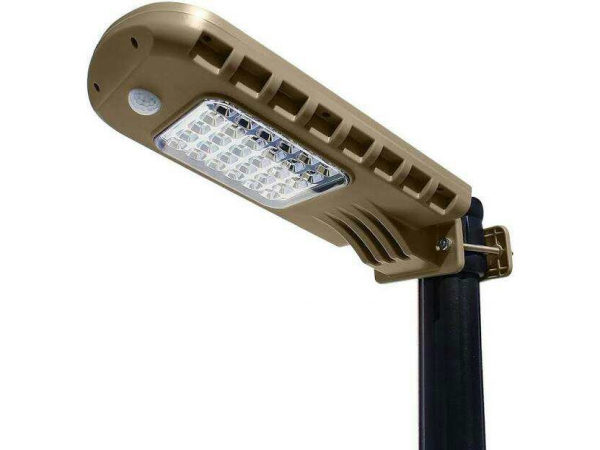

8w led solar motion security light

Feature:

 Solar security lighting to position where you want it.
 Integrates all components within one housing body.
 Easy and quick installation, less maintainance.
 Built-in motion sensor regulates light automatically.
 Lighting on when motion sensed at night .

Work Mode:

1 )  OFF STANDBY.
2 )  Light turn on when motion is sensed.
3 )  The preferred delay time of motion lighting to be selected by remote control.

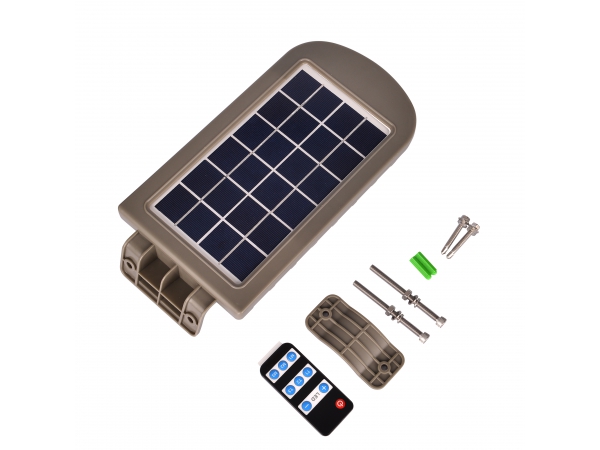

Remote control (WS660-8W):
Power button   -   ON / OFF

LED Dimming -    -   /   +
T1 = 10s, T2=20s, T3=30s.
M1 = 40s, M2=50s. M3=60s

Product Code.:

WS660-8W

LED Lamp:

8 Watt | 960 lumen | 6500 K  | Epistar

Solar Panel:

3 Watt Poly crsytalline

Dimension:

350 X 150 X 35 mm

Battery:

14.8Wh Lithium ion battery

PIR Sensor:

6-12 m | 140 Degree

Housing Material:

Waterproof plastic ABS housing

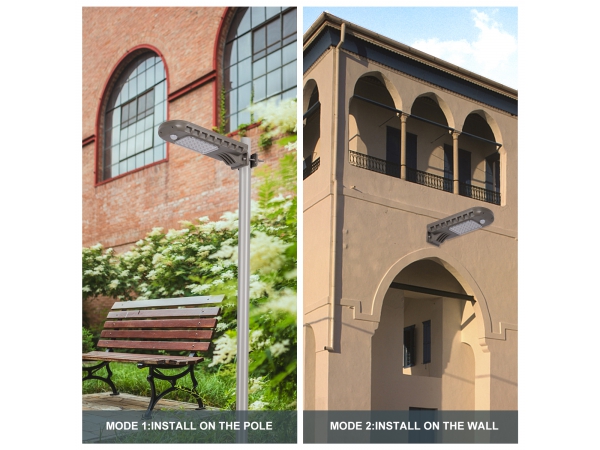

Installation height :

2-3 m (Pole diameter 40-60mm)

Protection

IP 65 (EN60529 compliant)

Protections:

Over Charge & Over discharge

Distance between poles:

10-12 m

Control:

PIR motion sensor + Smartlock Light control + Remote control




  • *

    *

    *

    *
