SOLAR LED STREET LIGHT

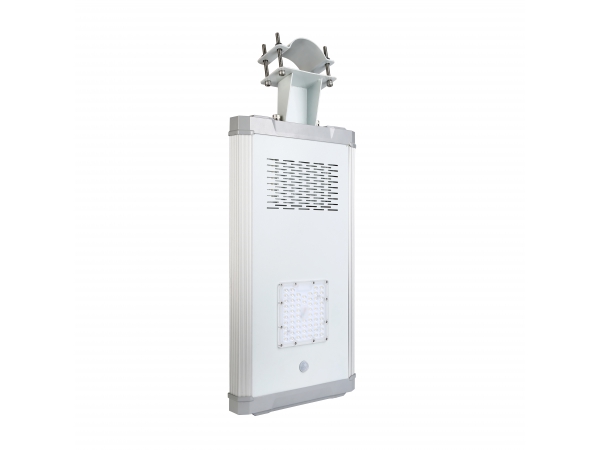

20W LED All in one Solar LED Street Light

Construction
Fully integrated solar street light from simplified & cast aluminum housing design optimize the construction to keep the stability and low cost.
Air-flow through heat sink design provides perfect heat management, waterproof design, lighter and keep stronger construction.
Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading.
Economic self contain street lighting fixtures ready for installation right out of the box.
Each fixture can be retrofitted  to an existing pole in no time.

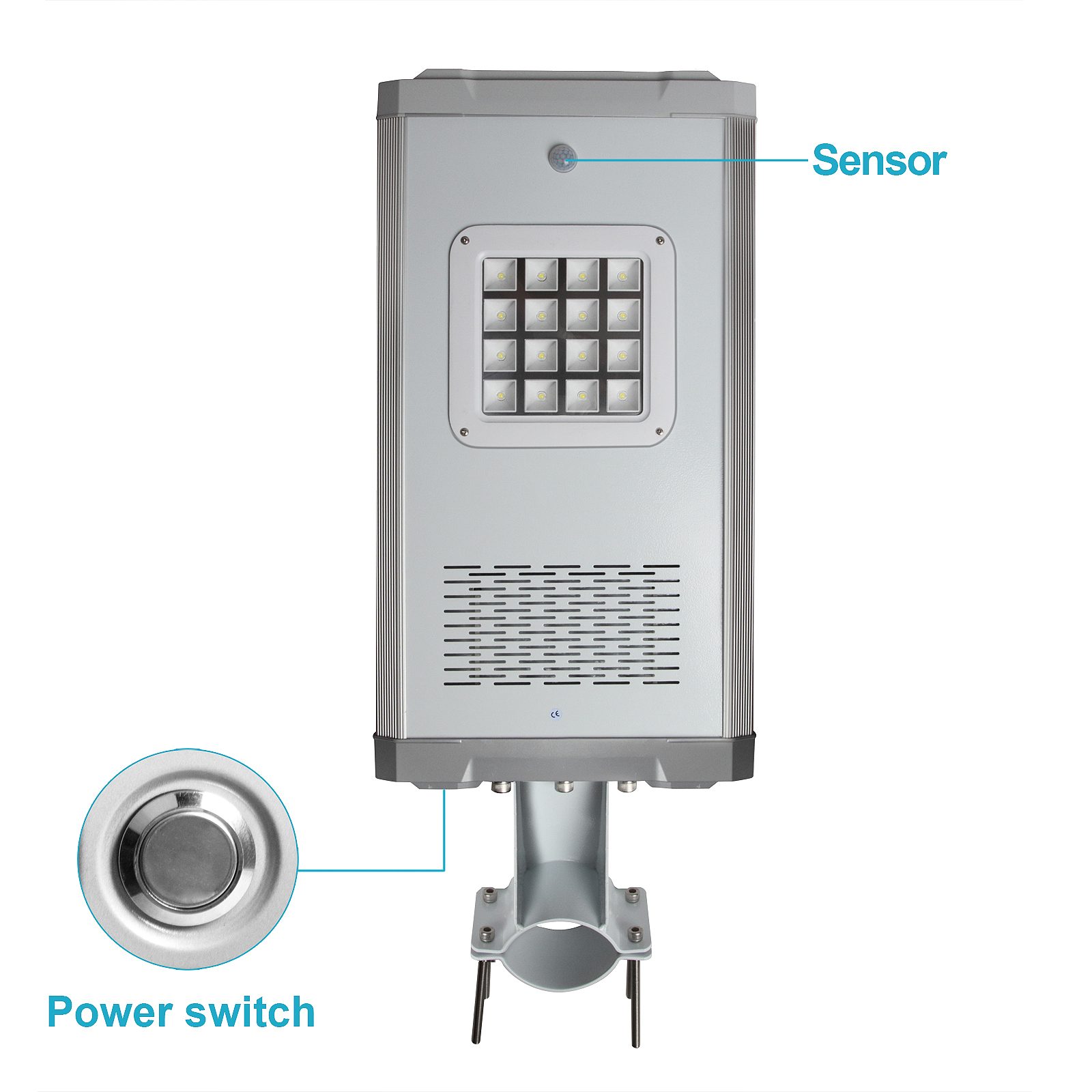

Intelligent PIR sensor for dusk to dawn operation, Brightness automatically switched by smart charge  controller management.

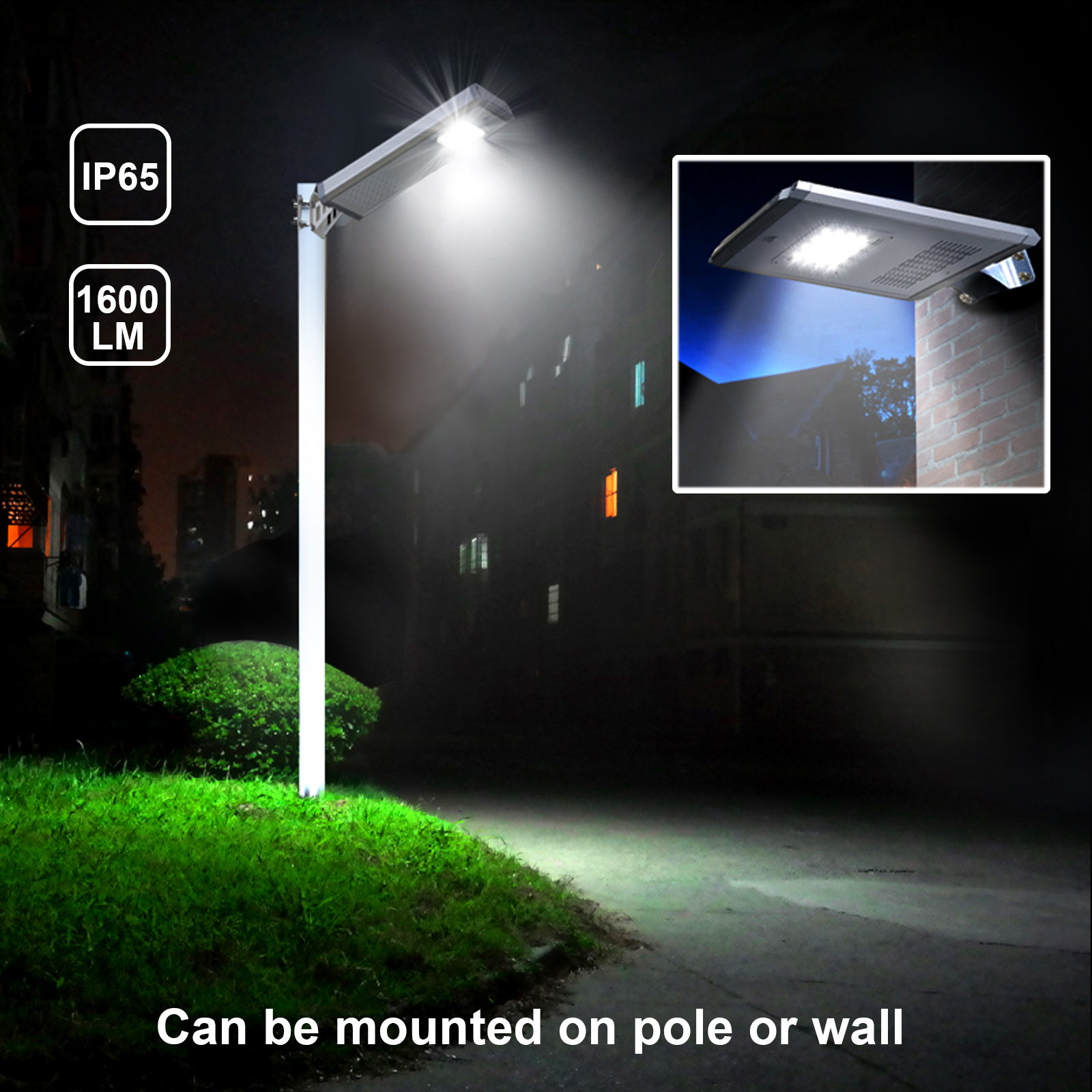

Universal mounting bracket enables mounting on variety of poles.

LED & Optics
Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (6500-7000K)
Precise integrated optic lens in high intensity PC material with IESNA Type I provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.

Electronics
IP 68 waterproof charge controller / Sensor / connector

Battery   -  2000 cycles LiFePO4 battery from qualified supplier, stable quality performance

Product Code

WS-603-20W

LED Light

20W  (LED chip Bridgelux USA)
2000-2200 lm ( 6500 K )

Solar panel

Mono crystallline  40W, 17.5V

Battery  (AH/V)

Type: Lithium iron phosphate
rechargeable LiFePO4 battery
Capacity: 18AH 12.8V
Life span: 2000 cycles (5 - 7 years)

Work mode:

12 hours  / night , Dim mode 30% brightness,
Bright mode 100% for 45 seconds when motion sensed

Backup

24 hours

Housing Material

Aluminium alloy

PIR sensor

YES

Operating temp

-20°C to +60°C

Lamp Color temp.

6500 K (Cool white)

Install height

4-6 m

Best Pole height

5-6 m

Pole Diam.

70-110mm

Pole distance

> 15 m

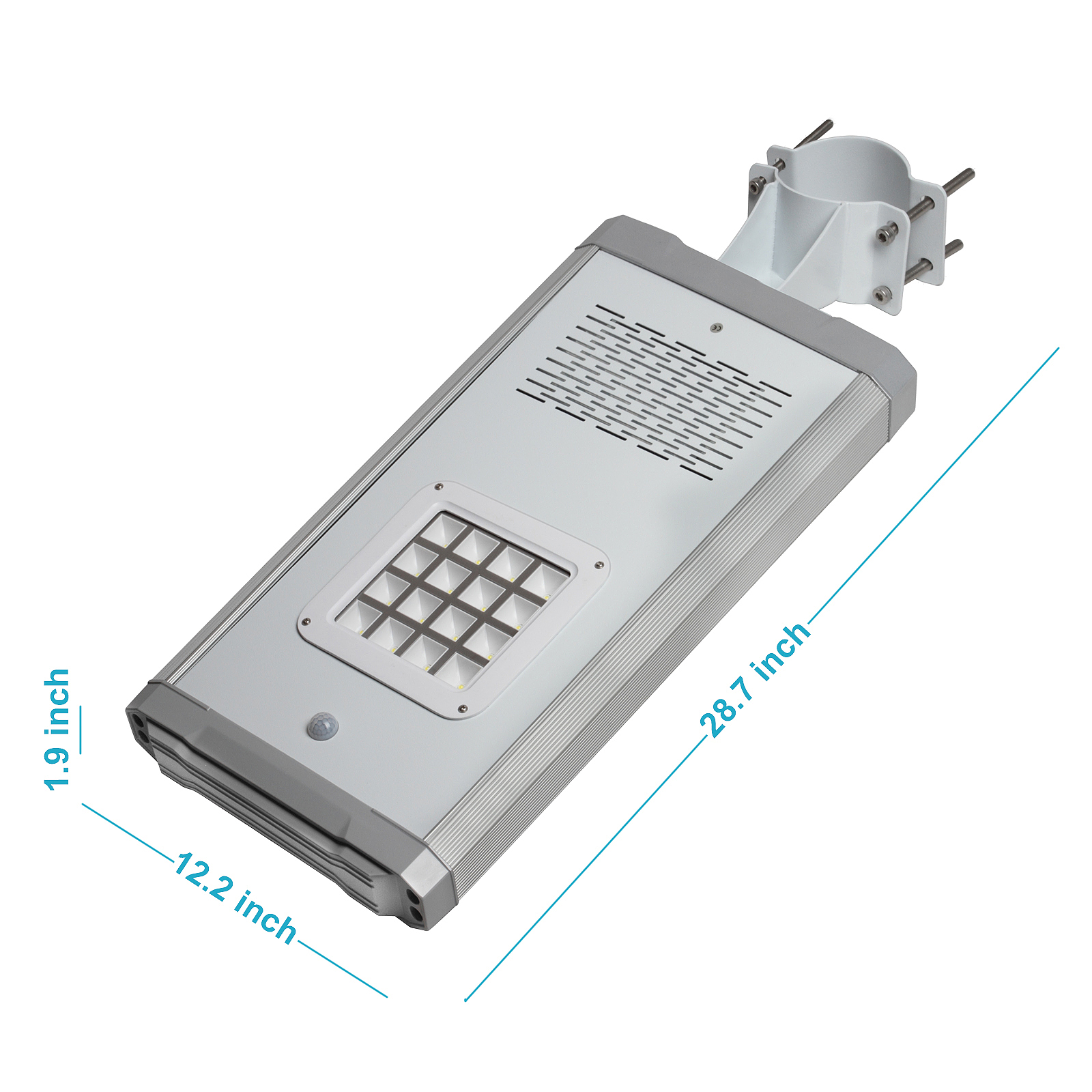

Dimensions

900 x 310 x 55 mm

Protection

IP 65 (EN60529 compliant)

  • *

    *

    *

    *
